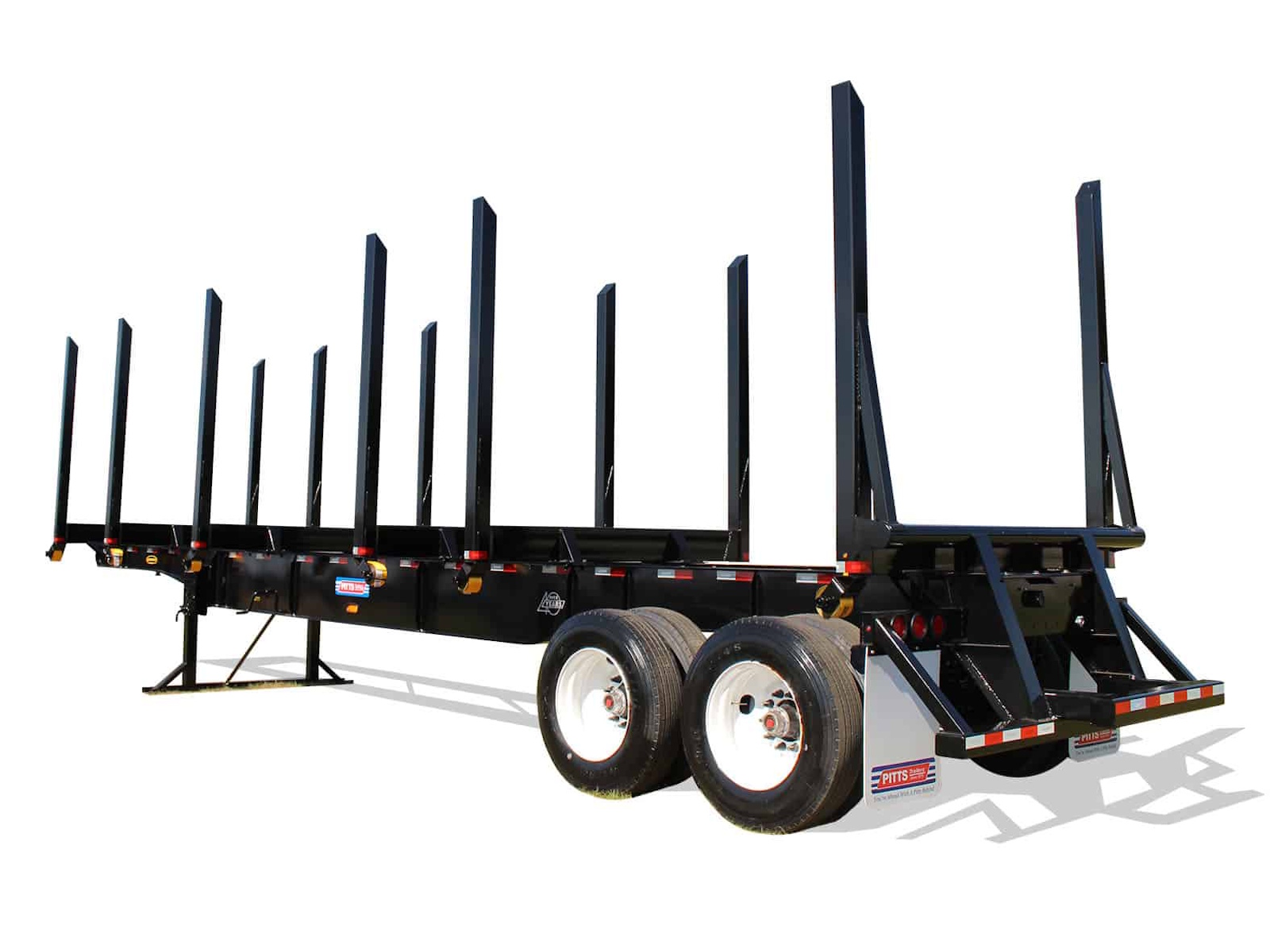

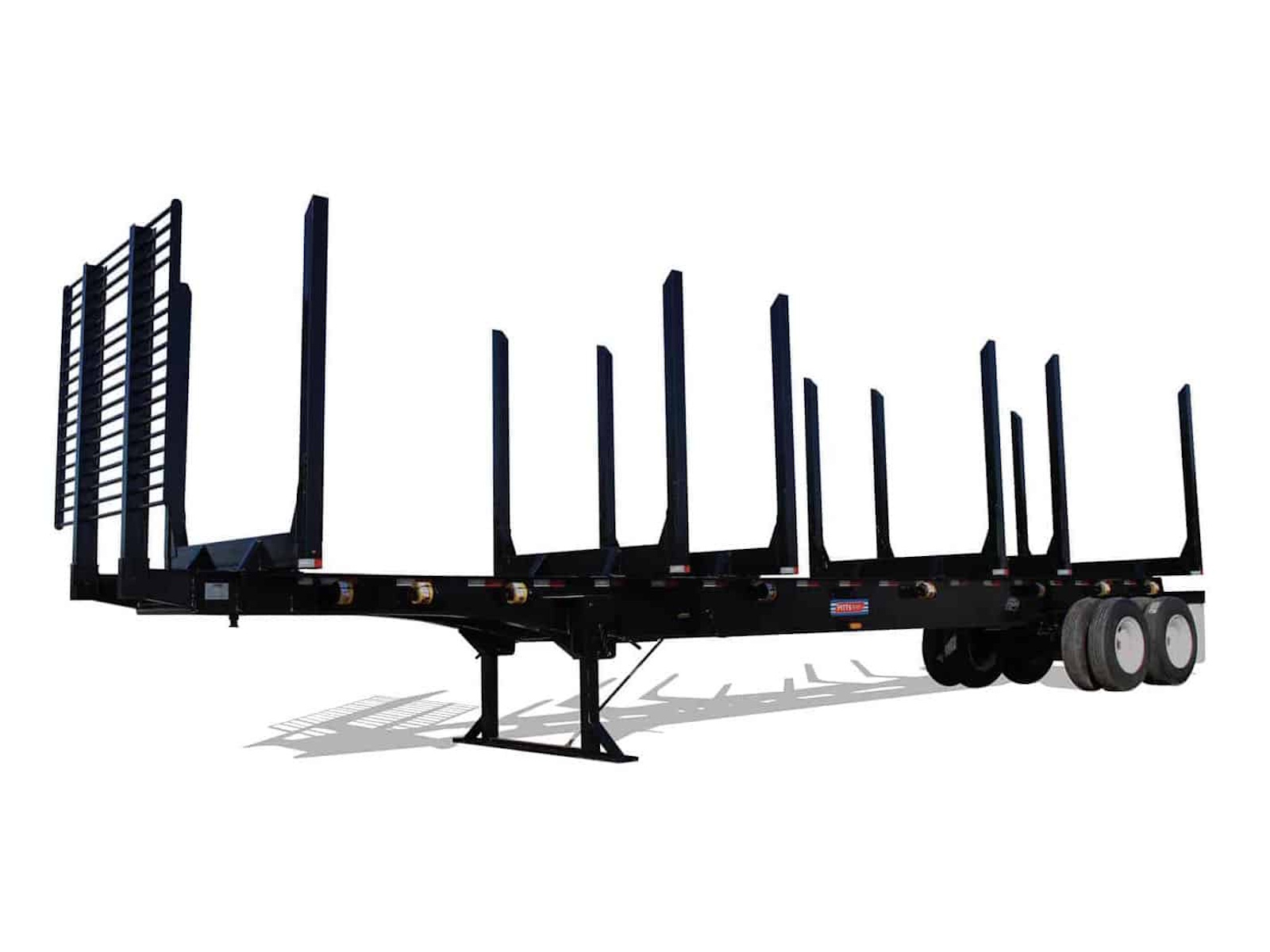

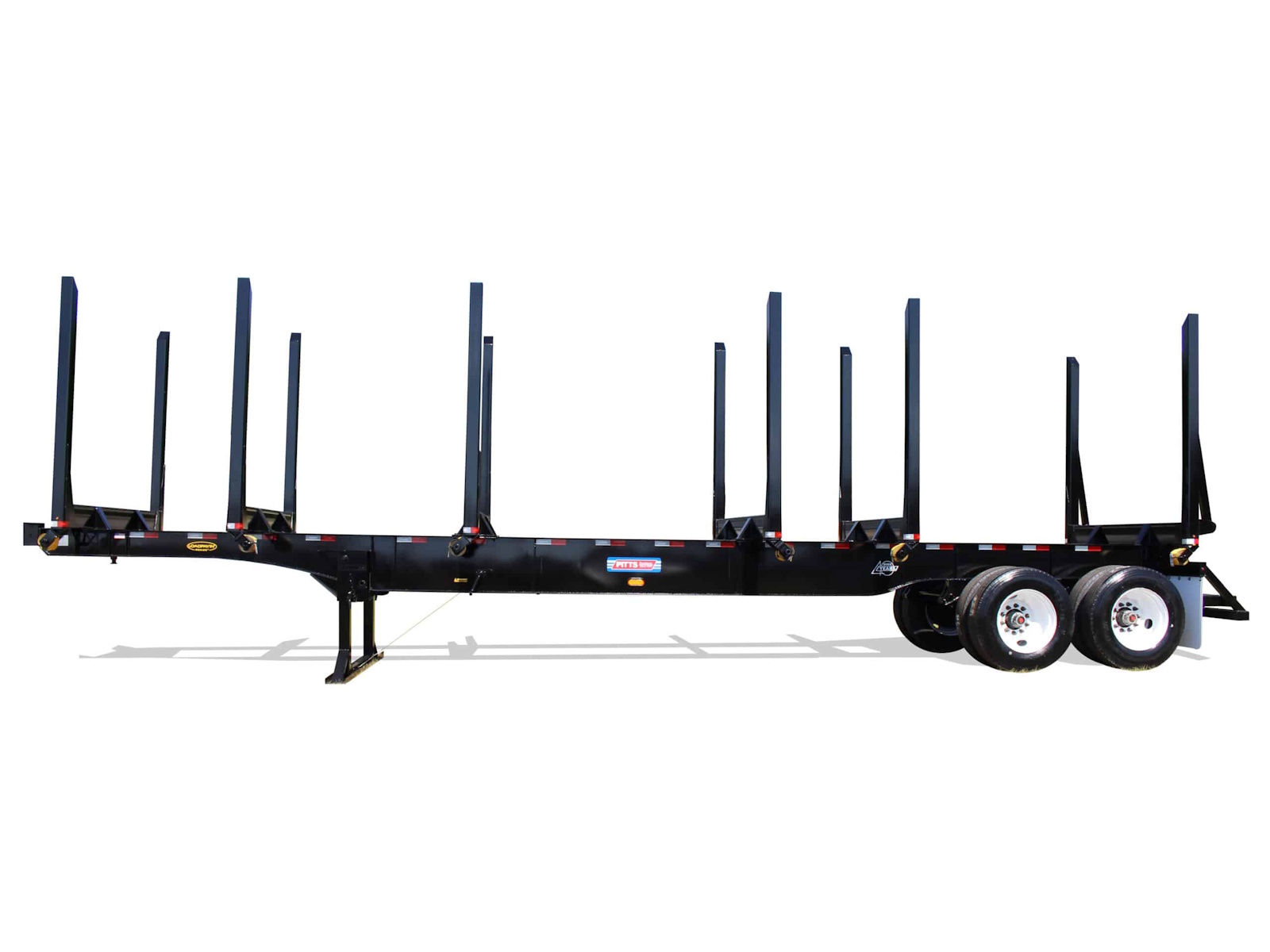

2026 Pitts Trailers LT40-L

In 1994, the pioneering Loadpayin’ Series introduced a fully fabricated frame made of High Yield Materials with a continuous submerged arc welding process that allows you to haul more wood and less steel, while maintaining the highest performance standards available in the industry — to HAUL MORE WOOD.

Features May Include:

• Starting at 9,300 lbs.
• 80,000 GVWR
• 22” Load Payin’ Series Main Frame – Fabricated from High Yield Steel – Straight Frame Design
• Load Payin’ 70K psi Exclusive Bolster and Standard Tubing
• Removable DOT Approved Headboard
• Exclusive 4-Leaf High Capacity Spring Suspension Standard Heavy Duty Single Point Spring and Air Ride Suspensions Available
• Grote Ultra Blue ™– Sealed Wiring Harness –Grote™ High Count LED Lights
• Steel Shot-Blasted – Primed – Painted with PPG™ Automotive Grade Acrylic Urethane

Options:

• Greaseless Revolver Coupling System
• Aluminum Wheels
• Grapple Bar
• Vulcan or SI Electronic Scales (Air Scale Option Also Available)
• Single Point Spring Suspension (w/ Lift Axle Option)
• Air Ride Suspension (w/ Lift Axle Option)
• 10’2” Spread Option w/ Air Ride Suspension
• Heavy Duty Headboard
• Slidable Bolsters
• Disc Brakes
• 11R22.5 Radial Tires
• Custom Designs Available
